56 Chapter 3 Installing IP telephones
P0993474 03

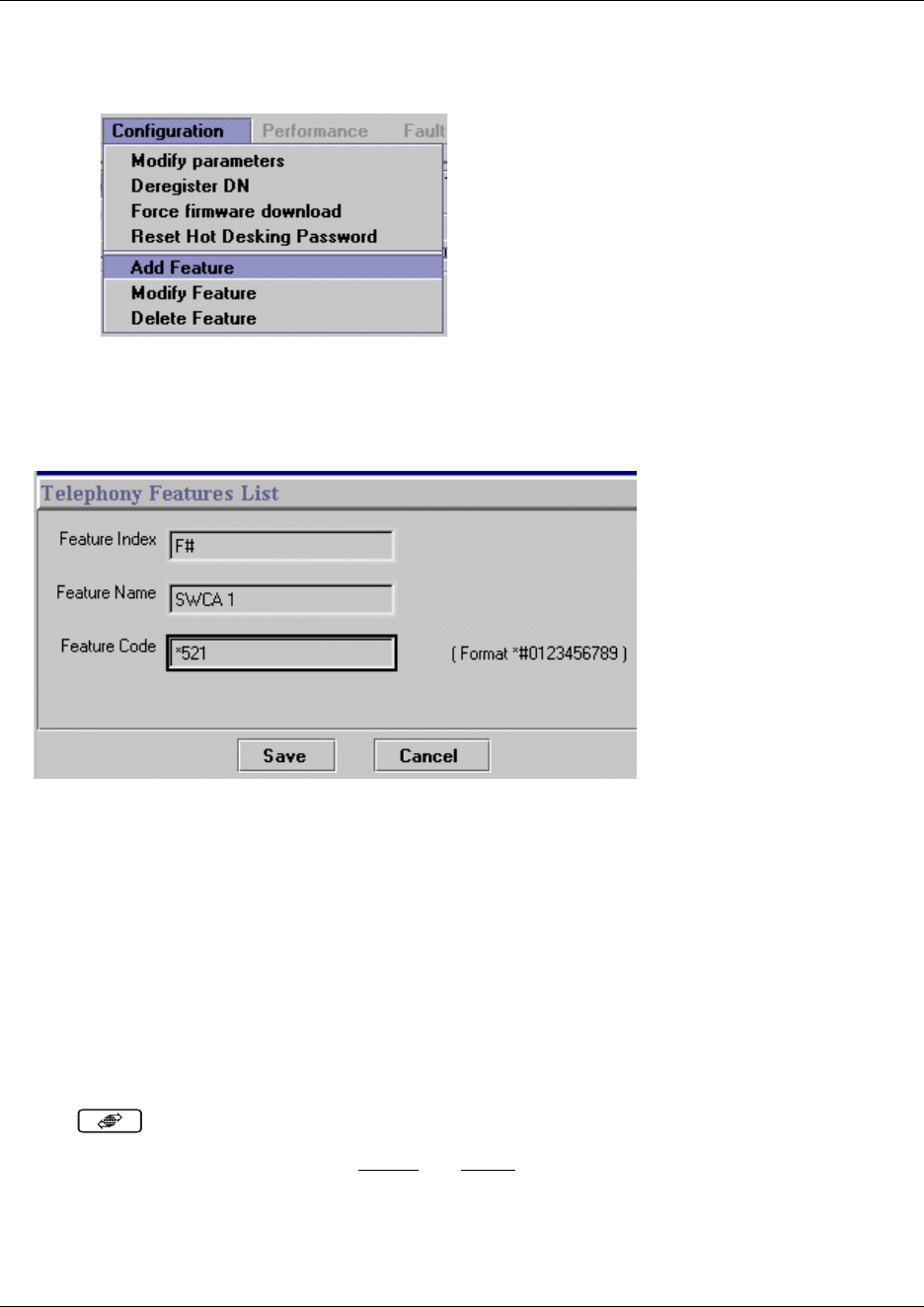

3 Select the feature you want to modify and right click, or click on the Configuration menu
item, then select the action you want to perform.
The Telephony Features list screen appears.
Figure 10 Add/Modify Telephony Features List
4 Enter or change the Feature Name and corresponding Feature Code in the appropriate fields.
5 Click Save.
The features list appears. Notice that the system assigns a Feature Index number, adding the
feature to the bottom of the list.
Using the Services button to access features
The IP telephone has a limited number of memory buttons that can be configured with lines or
features, however, a soft features menu also can be accessed by pressing the Services button
.
• Use the arrow buttons or the Page +
and Page - display keys to move quickly through the list.
• Use the up and down directional buttons to scroll to each feature.
